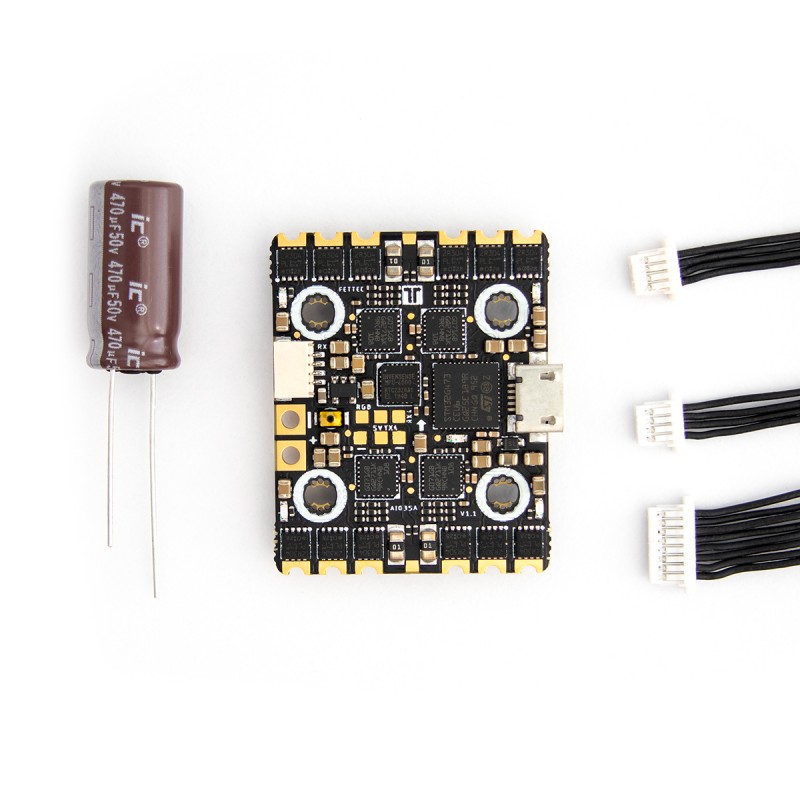

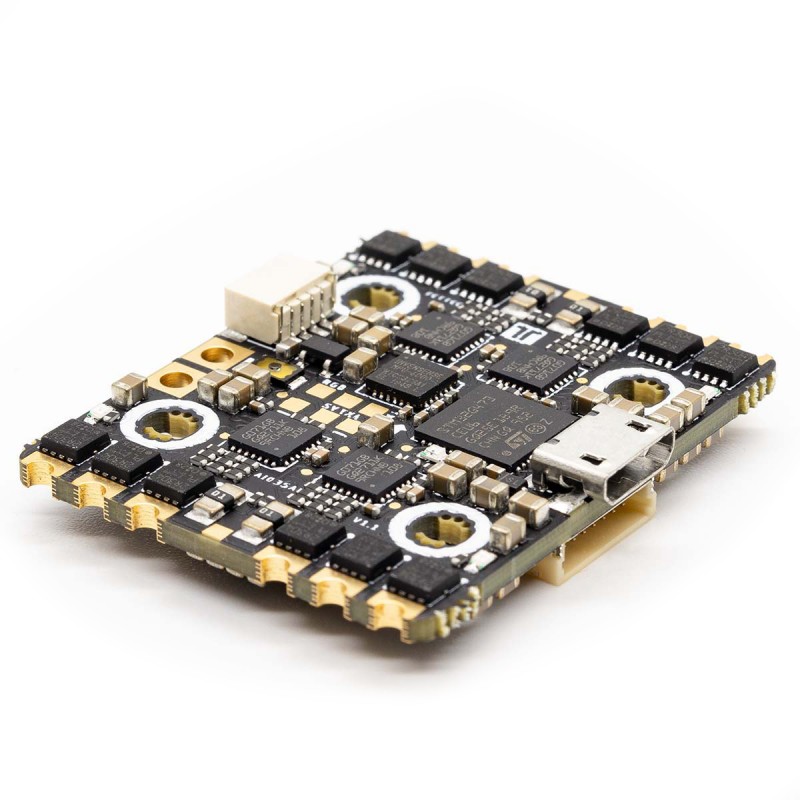

The FETtec G4-N AIO is a powerful AIO board from FETtec, featuring a G473 flight controller and 35A ESC. This product has no onboard analog OSD, but the use of digital OSDs is still possible as usual.
The FETtec G4-N 35A AIO is a powerful all-in-one board from FETtec, featuring a G473 flight controller and 35A ESC. This product has no onboard analog OSD, but the use of digital OSDs is still possible as usual.
Features
Powerful G4-N flight processer for ultimate performance
Two dedicated BECs for switchable power
Full sine-wave control for the ESC
A 20x20 mounted 35A AIO board
KISS flight tuning from FETtec
Specifications
Maximum outside dimensions: 30 x 37.5mm
Mounting hole arrangement: 20 x 20mm with M2 mounting hole (expandable to M3)
Overall Height: 7.9mm
Weight: 8.9g
OSD: None
FLIGHT CONTROLLER
Latest STM32G4 processor
170Mhz + Math accelerator
MPU6000
Designed for 12-25V supply voltage (3S-6S Lipo)
2x onboard BEC (max. 600mA each)
5V BEC for RX
5V/16V BEC for VTX (configurable and real pit*)
1x 8 pin connector for solderless connection to VTX, camera, and OSD of the digital systems
VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
2x 4 pin connector for receiver and VTX
Signal, telemetry, 5V, gnd
Gnd, 5V, TX1, RX1
5 UART serials
UART 1 free
UART 2 occupied by the receiver
UART 3 free
UART 4 occupied by OSD, can be used elsewhere depending on the configuration
The FETtec FC G4 v1.7 features the latest STM32G4 processor. Providing unparalleled processing power to your aircraft. Along with an IIM-42652 SPI gyro, two 5v BECs, 6-27V (2-6S) power handling, and a host of other features, the G4 from FETtec is on the cutting edge of Flight Controller technology.
