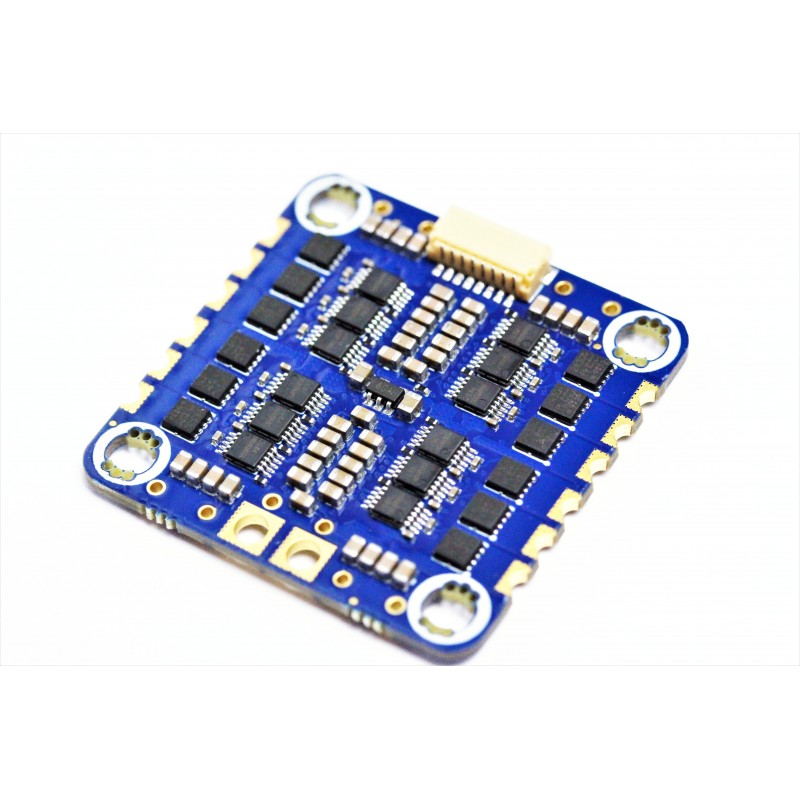

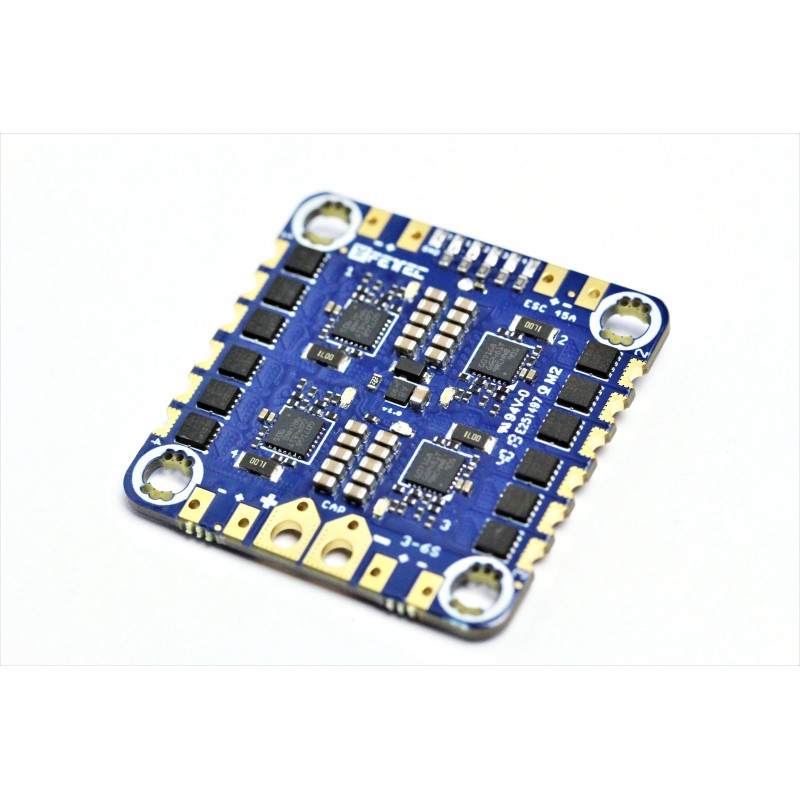

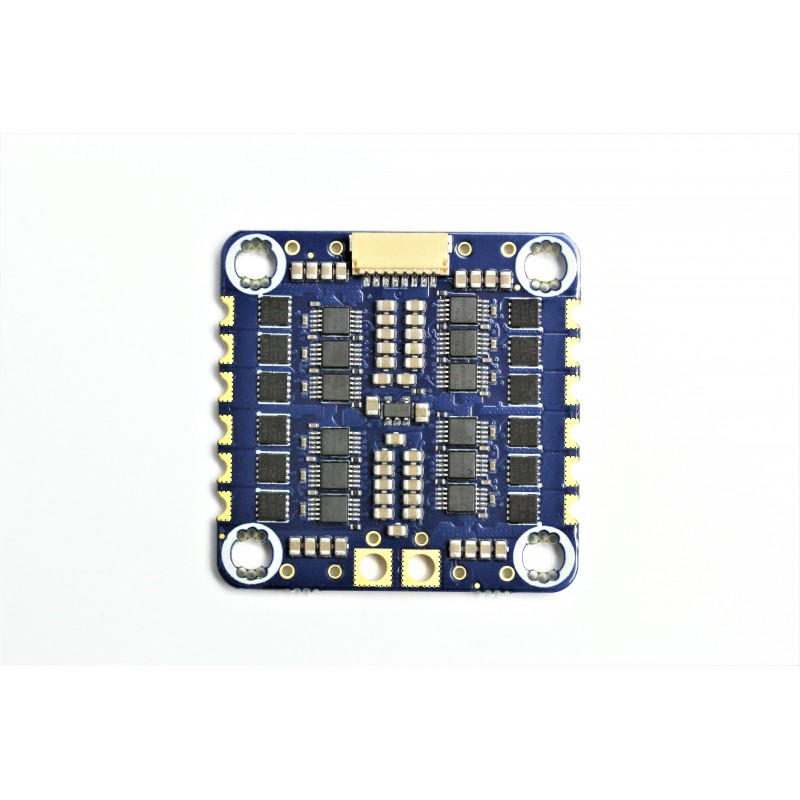

The FETtec 45A 3-6S ESC is a powerful 4-in-1 electronic speed controller that has a mounting pattern of 30.5x30.5 and supports Dshot 300-2400, OneShot 42/125, PWM, Crossfire, SBUS, and other features!
The FETtec 45A 3-6S ESC is a powerful 4-in-1 electronic speed controller that has a mounting pattern of 30.5x30.5 and supports Dshot 300-2400, OneShot 42/125, PWM, Crossfire, SBUS, and other features!
Specifications
Active current limiting @ 45A
Input voltage: 3S-6S
High-quality 40V MOSFETs
STM32G071 @ 64MHz
128 kHz Motor PWM
Full sine wave control
Soldering holes for up to 5 additional capacitors
KISS FC Passthrough
Betaflight Passthrough (available in 4.1)
Automatic input signal detection:
Dshot 300-2400
PWM
OneShot 42/125
OneWire BUS with up to 8kHz loop time (one cable for all Motorsignals and Telemetry)
In development: Crossfire, SBUS
38 mm x 38 mm
Mounting hole: 30.5 mm x 30.5 mm, M3 expandable to M4
Firmware
New FETtec Firmware
FETtec Configurator for updated, configuration, and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin
